High-voltage flat resistor

Our high-voltage flat resistors are designed to meet customers’ requirements. These individual specifications make the series particularly effective for the respective application. They are capable of regulating very high voltages, making them easily measurable and safer to handle.
The high voltage flat resistors also regulate voltage in measuring devices. As a result, they provide an easy and cost-effective way of measuring. Therefore, these resistors play an important role in power supply devices like x-ray units, laboratory equipment or applications in the aeronautical engineering field.

The benefits of high-voltage flat resistors

The resistors in each series of our EBG high-voltage flat resistors can be flexibly and quickly adapted to our customers’ requirements. We provide our customers resistors in various voltage ranges, dimensions, tight tolerances and ohm values.

Icon Möglichkeiten
Many sizes available

High voltage flat resistors are available with different mechanical dimensions - choose the best option depending on your application (up to 35 kV in air).

Icon Beschichtungsoptionen
Coating options

Choose from a wide range of different materials depending on the ambient conditions.

Icon Bauformen
Flexible design

The resistors are available in axial or radial versions.

The standard wire diameter is 0.6 mm. The flexible design also allows other options, including surface mounted SMD resistors without wire (details on request).

Icon kundenspezifische Ausführungen
Custom designs

With the help of our R&D team and test laboratory, we develop custom-designed high-voltage flat resistors.

Would you like to know more about high-voltage flat resistors?

Sabine Kamper-Rottensteiner - Solution Team Industrie
Sabine Kamper-Rottensteiner
Sales Team Industrie

Contact us now.

Contact us now!
[Translate to English:] Serie FBX / FEX / FSX

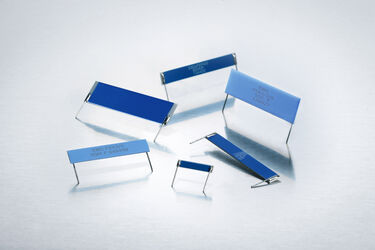

FBX / FSX series

Our high-voltage flat resistor has a TCR of ±80 ppm/°C. Combined with a wide ohmic range and low tolerances,



Features

  • Operating voltage: up to 29 kV
  • Tolerance range: ± 0.5% to ± 10% (tighter tolerances on request)
  • Ohmic range: 200 Ω to 2 GΩ (higher values on request)
  • Temperature coefficient: ±80 ppm/°C at ≤ 100 MΩ
  • Different coating options
  • Non-inductive design
  • RoHS compliant

Main areas of application

  • High voltage measuring equipment
  • Power supply devices
  • Medical technology
  • Electrostatic devices
  • Smart Grid Sensing / Metering X-ray equipment
  • Motor control systems
  • Instrumentation



Download

EBG Series FBX / FSX Download

FPX / FLX

FPX / FLX series

The FPX / FLX series is available with a TCR of ±100 ppm/°C, a wide ohmic and a tight tolerance range.



Features

  • Operating voltage: up to 22 kV
  • Operating power: up to 7.5 W
  • Tolerance range: ± 0.5% to ± 10%
  • Ohmic range: 200 Ω to 2 GΩ
  • Temperature coefficient: ±100 ppm/°C
  • Non-inductive design
  • RoHS compliant

Main areas of application

  • High voltage measuring equipment
  • Power supply devices
  • Medical technology
  • Electrostatic devices
  • Smart Grid Sensing / Metering
  • X-ray equipment
  • Motor control systems
  • Instrumentation


Download

EBG Series FPX / FLX Download

[Translate to English:] Serie MTX 967

MTX 967 series

The high-voltage flat resistors are available with various coating options such as silicone, glass and polyimide and have a TCR range of ±15 ppm/°C to ±200 ppm/°C.



Features

  • Operating voltage: up to 35 kV
  • Tolerance range: ± 0.1% to ± 10%
  • Ohmic range: 10 Ω to 30 GΩ
  • Temperature coefficient: ±15 ppm/°C to ±200 ppm/°C (low TCR on request)
  • Non-inductive design
  • RoHS compliant



Main areas of application

  • High-voltage measuring equipment
  • Power supply devices
  • Medical technology
  • Electrostatic devices
  • Smart Grid Sensing / Metering X-ray equipment
  • Motor control systems
  • Instrumentation



Download

EBG Series MTX 967 Download

Do you have any questions about our high-voltage flat resistors?

Sabine Kamper-Rottensteiner - Solution Team Industrie
Sabine Kamper-Rottensteiner
Sales Team Industrie

Contact us now.

Contact us now!
[Translate to English:] ROHS compliant icon

Quality features of EBG flat resistors

Our products are characterized by the following features:



  • RoHS compliant
  • Low-inductance design
