Carbon disc resistor

The carbon disc resistor was developed to provide an optimal solution for many applications in power electronics business. The resistors are non-inductive and capable of withstanding transient high-voltage impulses. These carbon disc resistors are used in dumping braking circuits, overvoltage protection and discharge applications.

The benefits of carbon disc resistors

Miba Resistors, former EBG, carbon disc resistor series can be quickly and flexibly adapted to customer requirements.

Flexible design

The carbon disc resistors are available with various connection options.

Custom designs

With the help of our R&D team and test laboratory, we develop your custom-designed carbon disc resistor.

Do you have any questions about our carbon disc resistors?

We would be pleased to advise you.

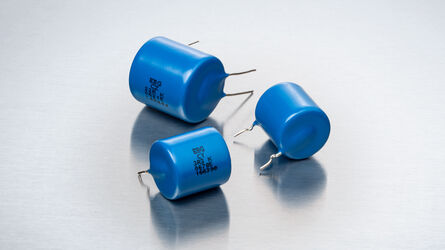

CSR series

Carbon disc resistor with PCB mounting

Features

Power: up to 6.5 W
Tolerance range: ± 20% standard (± 10% upon request)
Ohmic range: 1 Ω to 700 Ω
Temperature coefficient: -500 ppm/°C to -1500 ppm/°C

Main areas of application

Electrical power transmission
Drive control systems
Power supply devices

Download

Miba Resistors series CSR download

Quality features

Our products are characterized by the following features:

ROHS compliant
Materials in accordance with UL 94 V-0
