High Performance vs. Compact Design

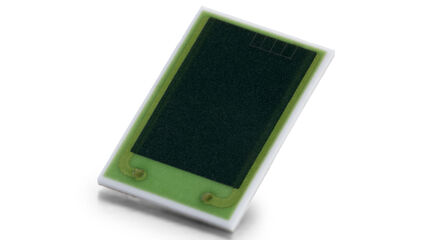

Our low-inductive thick-film power resistors can be used in tight spaces due to their compact design. They regulate power peaks and help to control the rotational speed of electric motors used in industrial machines and vehicles such as trams and locomotives. Our power resistors assist the transmission of energy, produced on direct current basis.
Single internal resistor with different connection possibilities
Two internal resistors either separate or internally connected
Three resistors internally connected in series
Several options of power resistors — from 18 W to 600 W.
Always providing high power vs. size ratio
High insulation withstand – all power resistors are insulated against ground
(350V — 5kV DC, higher on request)
High performance and flexible installation vs. despite its compact size and design. Depending on the series, mounting with screw contacts, Fast-On, cable, or solder-pin connections.
With the help of our R&D team and test laboratory, we develop custom-built power resistors.
Contact us now.
The LXP-18 TO-220 series has a power rating of 18 W and is used for high frequency and pulse loads. Single screw mounting for this power resistor.
EBG Series LXP-18 TO-220 Download
The 20 W power resistor is ideal for high frequency and pulse loads. This series requires a heat sink and must be clipped on (no mounting hole).
The 100 W power resistor is used in high-frequency and pulse-load applications. Version B for enforced mechanical stability.
The 150 W power resistor is used in high-frequency and pulse-load applications.
The 150 W power resistor is used in high-frequency and pulse-load applications.
The 35 W thick film resistor for high-frequency and pulse load applications. Single screw mounting for this power resistor.
The 35 W thick film resistor is designed for surface mounting including metal tab.
MHP 35 SMD TO-220 used for high temperature soldering!
The 50 W power resistor has up to four connection wires.
The 100 W power resistor is available with up to four wire terminals.
Version B for enforced mechanical stability.
The 150 W power resistor is available with different terminal options.
The 600 W power resistor is available with different terminal options.
The 120 W power resistor in “ISOTOP” power device is available in up to six different layouts. Mounting on a heat sink is required.
The 150 W power resistor is available with up to four different layouts. Easy mounting on a heatsink.
Main areas of application
The 180 W power resistor is available with up to four different layouts. Easy mounting on the heat sink.
The 150 W power resistors is available in only 1 configuration. Easy mounting on the heat sink.
The 200 W power resistor in “ISOTOP” power device is available in up to five different layouts. Easy mounting on a heat sink.
The HXP-600 power resistor series is available in up to five different layouts.
The 200 W power resistor is available in up to five different layouts.
This series has a solder-pin connection.
The 250 W power resistor is available in up to five different layouts. This series is available with different connection possibilities.
300 W at 25°C bottom case temperature or 200 W at 85°C. This power resistor series is available with different connection possibilities and up to five different layouts.
The 100 W power resistor with 85°C bottom case temperature. This series has a Fast-On connection for easy mounting on heat sinks and PCB.
The 150 W power resistor with 70°C bottom case temperature.
The 100 W low-ohm pulse power resistor - only 1 configuration possible
