Shunts

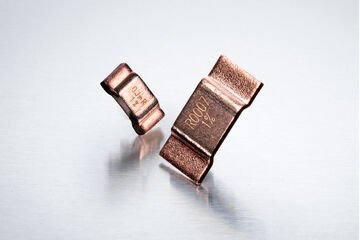

Shunt resistors are characterized by their high insulation resistance and low temperature coefficients. They are available in three different performance categories with four-terminal Kelvin connections. Shunts are used for current measurement and power monitoring.



The benefits of shunts

Our shunt resistors can be quickly and flexibly adapted to customer requirements. We provide our customers shunts in various power options, dimensions, tight tolerances and ohm values.



Icon Bauformen
Different designs

Choose between the SOT-227 design for mounting on a heatsink or a compact housing for on-board mounting.

Icon Möglichkeiten
Multiple options

Power vs. size ratio - 3 W to 100 W.

We offer several options.

Kundenspezifische Ausführungen Icon
Custom designs

We develop customer-specific shunts with the help of our R&D team and test laboratory.

Would you like to know more about our shunts?

Sabine Kamper-Rottensteiner - Solution Team Industrie
Sabine Kamper-Rottensteiner

Contact us now.

PCS series

In addition to the four-contact Kelvin connections, our shunts also include a 3 W / 60 W / 100 W resistor for current measurement.



Features

  • Operating power: 3 W / 60 W / 100 W
  • Tolerance range: ± 5% to ± 1% (tighter tolerances on request)
  • Ohmic range: 0.5 mΩ to 1 Ω
  • Temperature coefficient: ≤ ±60 ppm/°C (up to ±500 ppm/°C depending on resistance value)
  • Non-inductive design
  • RoHS compliant



Main areas of application

  • Motor control systems
  • Test equipment
  • Power supply devices
  • Instrumentation



Download

EBG Series PCS Download

Quality features of EBG shunts

Our products are characterized by the following features:



  • RoHS compliant
  • Materials in accordance with UL 94 V-0
  • Low-inductance design
