Our Power Resistors

High Performance vs. Compact Design

Our low-inductive thick-film power resistors can be used in tight spaces due to their compact design. They regulate power peaks and help to control the rotational speed of electric motors used in industrial machines and vehicles such as trams and locomotives. Our power resistors assist the transmission of energy, produced on direct current basis.

Using the advantages of power resistors correctly

EBG power resistors are available in various power levels, sizes, tight tolerances and ohmic values to meet the specific requirements of our customers. Each series can be quickly and flexibly adapted to the customer’s specifications.



Ihre Vorteile mit Leistungswiderständen von EBG

Unsere Leistungswiderstände sind vielseitig einsetzbar:
Sie regulieren Spannungsspitzen, leiten Überspannungen ab und regeln die Drehgeschwindigkeit von Elektromotoren. Das ist in verschiedenen Anwendungen wie Industrieanlagen oder Fahrzeugen wie Straßenbahnen und Lokomotiven notwendig.

Icon Möglichkeiten
Many options

Several options of power resistors — from 18 W to 600 W.

Always providing high power vs. size ratio

Icon Isolationsfestigkeit
High insulation strength

High insulation withstand – all power resistors are insulated against ground

(350V — 5kV DC, higher on request)

Icon flexible Anschlussmöglichkeiten
Space-saving & flexible

High performance and flexible installation vs. despite its compact size and design. Depending on the series, mounting with screw contacts, Fast-On, cable, or solder-pin connections.

Icon kundenspezifische Ausführungen
Custom designs

With the help of our R&D team and test laboratory, we develop custom-built power resistors.

Would you like to find out more about customized high-power & high-voltage resistors?

Sabine Kamper-Rottensteiner - Solution Team Industrie

We are happy to advise you personally!

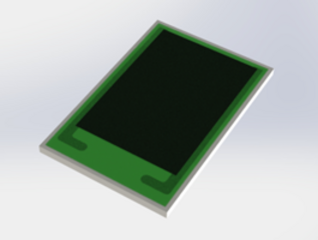

All in one

Multiple resistors in 1 package.



Darstellung der Möglichkeiten mit einem Widerstand
One resistor

Single internal resistor with different connection possibilities

Darstellung der Möglichkeiten mit zwei Widerständen
Two internal connections

Two internal resistors either separate or internally connected

Darstellung der Möglichkeit mit drei Widerständen
Three resistors

Three resistors internally connected in series

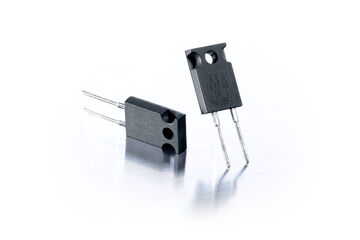

LXP-18 TO-220 series

The LXP-18 TO-220 series has a power rating of 18 W and is used for high frequency and pulse loads. Single screw mounting for this power resistor.





Features



  • Operating power: 18 W
  • Package configuration: TO-220
  • Tolerance range: ± 0.5% to ± 10%
  • Ohmic range: from 0.05 Ω to 1 MΩ (higher values on request)
  • Temperature coefficient: ±50 ppm/°C ≥ 10 Ω
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Download

EBG Series LXP-18 TO-220 Download



LXP-20 TO-220 series

The 20 W power resistor is ideal for high frequency and pulse loads. This series requires a heat sink and must be clipped on (no mounting hole).





Features



  • Operating power: 20 W
  • Package configuration: TO-220
  • Tolerance range: ± 0.5% to ± 10%
  • Ohmic range: from 0.05 Ω to 1 MΩ (higher values on request)
  • Temperature coefficient: ±50 ppm/°C ≥ 10 Ω
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation Traction
  • Welding technology



Download

EBG Series LXP-20 TO-220 Downloads

LXP-100 B TO-247 series

The 100 W power resistor is used in high-frequency and pulse-load applications. Version B for enforced mechanical stability.





Features



  • Operating power: 100 W
  • Package configuration: TO-247
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 0.05 Ω to 1 MΩ (higher values on request)
  • Temperature coefficient: ±50 ppm/°C > 10 Ω (lower TCR on request)
  • Low-inductance design
  • RoHS compliant
  • AEC-Q200 compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Downloads

EBG Series LXP-100 B TO-247 Download

LXP-150 TO-247 series

The 150 W power resistor is used in high-frequency and pulse-load applications.





Features



  • Operating power: 150 W
  • Package configuration: TO-247
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 0.2 Ω to 1 MΩ
  • Temperature coefficient: ±50 ppm/°C > 10 Ω
  • Low-inductance design
  • AEC-Q200 compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Downloads

EBG Series LXP-150 TO-247 Download

LHP-150 TO-247 series

The 150 W power resistor is used in high-frequency and pulse-load applications.





Features



  • Operating power: 150 W
  • Package configuration: TO-247
  • Tolerance range: ± 5% to ± 10%
  • Ohmic range: from 0.2 Ω to 1 MΩ
  • Temperature coefficient: ±150 ppm/°C
  • Low-inductance design
  • AEC-Q200 compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Downloads

EBG Series LHP-150 TO-247 Download

MXP 35 TO-220 series

The 35 W thick film resistor for high-frequency and pulse load applications. Single screw mounting for this power resistor.





Features



  • Operating power: 35 W
  • Package configuration: TO-220
  • Tolerance range: ± 0.5% to ± 10%
  • Ohmic range: from 0.05 Ω to 1 MΩ (other values on request)
  • Temperature coefficient: ±50 ppm/°C ≥ 10 Ω
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Downloads

EBG Series MXP 35 TO-220 Download

MSP 35 SMD TO-220 series

The 35 W thick film resistor is designed for surface mounting including metal tab.
MHP 35 SMD TO-220 used for high temperature soldering!





Features



  • Operating power: 35 W
  • Package configuration: SMD TO-220
  • Tolerance range: ± 0.5% to ± 10%
  • Ohmic range: from 0.1 Ω to 1 MΩ (other values on request)
  • Temperature coefficient: ±50 ppm/°C ≥ 10 Ω
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Power supply devices
  • Motor drives and controls
  • Electric vehicles
  • Converters
  • Medical technology
  • Instrumentation
  • Traction
  • Welding technology



Download

EBG Series MSP 35 SMD TO-220 Download

AXP-50 series

The 50 W power resistor has up to four connection wires.





Features



  • Operating power: 1 x 50 W / 2 x 20 W / 3 x 10 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 1 Ω to 1 MΩ
  • Temperature coefficient: ±50 ppm/°C to ±250 ppm/°C
  • Standard wire length: 100 mm (other lengths available)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series AXP-50 Download

AXP-100 B series

The 100 W power resistor is available with up to four wire terminals.
Version B for enforced mechanical stability.





Features



  • Operating power: 1 x 100 W / 2 x 38 W / 3 x 17 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 1 Ω to 1 MΩ
  • Temperature coefficient: ±50 ppm/°C to ±250 ppm/°C
  • Standard wire length: 100 mm (other lengths available)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series AXP-100 B Download

AXP-150 series

The 150 W power resistor is available with different terminal options.





Features



  • Operating power: 1 x 150 W/ 2 x 60 W/ 3 x 33 W
  • Molding package: SOT-227
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 0.5 Ω to 1 MΩ
  • Temperature coefficient: ±50 ppm/°C to ±250 ppm/°C
  • Low-inductance design
  • RoHS compliant





Download

EBG Series AXP-150 Download

AXS-600 / AXF-600 / AXP-600 series

The 600 W power resistor is available with different terminal options.





Features



  • Operating power: 1 x 600 W/ 2 x 240 W/ 3 x 135 W
  • AXS-600 (screw connection) / AXF-600 (Fast-On conncetion) / AXP-600 (cable connection)
  • Tolerance range: ± 5% to ± 10% (configuration 4, 5, 6 only ± 10% possible)
  • Ohmic range: from 0.15 Ω to 5 KΩ
  • Temperature coefficient: ±250 ppm/°C > 1 Ω
  • Low-inductance design
  • RoHS compliant





Download

EBG Series AXS-600 / AXF-600 / AXP-600 Download

GXP 120 series in SOT-227 housing

The 120 W power resistor in “ISOTOP” power device is available in up to six different layouts. Mounting on a heat sink is required.





Features



  • Operating power:1 x 120 W / 2 x 50 W / 3 x 30W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 0.1 Ω to 1 MΩ
  • Temperature coefficient: >1R ±250 ppm/°C (lower TCR on request)
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant
  • AEC-Q200 compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series GXP 120 in SOT-227-housing Download

HPP 150 series

The 150 W power resistor is available with up to four different layouts. Easy mounting on a heatsink.





Features



  • Opearting power: 1 x 150 W / 2 x 60 W / 3 x 33W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 1 Ω to 1 MΩ (other values on request)
  • Temperature coefficient: ±250 ppm/°C (lower TCR on request)
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series HPP 150 Download

VHP series

The 180 W power resistor is available with up to four different layouts. Easy mounting on the heat sink.





Features



  • Operating power: 1 x 180 W / 2 x 70 W / 3 x 40 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 1 Ω to 1 MΩ (higher values on request)
  • Temperature coefficient: ±250 ppm/°C (lower TCR on request)
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series VHP Download

HPS 150 series

The 150 W power resistors is available in only 1 configuration. Easy mounting on the heat sink.





Features



  • Operating power: 150 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: from 1 Ω to 1 MΩ (other values on request)
  • Temperature coefficient: ±250 ppm/°C (lower TCR on request)
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series HPS 150 Download

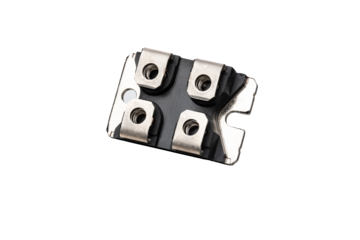

HXP 200 series in SOT-227 housing

The 200 W power resistor in “ISOTOP” power device is available in up to five different layouts. Easy mounting on a heat sink.





Features



  • Operating power: 1 x 200 W / 2 x 80 W / 3 x 45 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: 0.1 Ω to 1 MΩ
  • Temperature coefficient: >1R ±250 ppm/°C (lower TCR on request)
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant
  • AEC-Q200 compliant



Main areas of application



  • Motor drives and controls
  • Power supply devices
  • Power controllers
  • Telecommunication technology
  • Robotics
  • Medical technology
  • Renewable energy systems
  • Traction
  • Welding technology
  • Electric vehicles



Download

EBG Series HXP 200 in SOT-227-housing Download

HXP-600 series

The HXP-600 power resistor series is available in up to five different layouts.





Features



  • Operating power: 1 x 600 W / 2 x 240 W / 3 x 135 W
  • Tolerance range: ± 5% to ± 10%
  • Resistance range: from 0.15 Ω to 5 KΩ
  • Temperature coefficient: >1R ±150 ppm/°C
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Frequency converters
  • Power supply devices
  • Power controllers
  • Robotics
  • Motor control systems



Download

EBG Series HXP-600 Download

PXP 200 series, SOT-227 (solder pin)

The 200 W power resistor is available in up to five different layouts.
This series has a solder-pin connection.





Features



  • Opearting power: 1 x 200 W / 2 x 80 W / 3 x 45 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: 0.1 Ω to 1 MΩ (higher values on request)
  • Temperature coefficient: >1R ±250 ppm/°C
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Frequency converters
  • Power supply devices
  • Power controllers
  • Robotics
  • Motor control systems



Download

EBG Series PXP 200, SOT-227 (solder pin) Download

LPP-250 series

The 250 W power resistor is available in up to five different layouts. This series is available with different connection possibilities.





Features



  • Operating power: 1 x 250 W / 2 x 100 W / 3 x 55 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: on request
  • Temperature coefficient: ±250 ppm/°C
  • Connection option: fast-on (F), solder-pin (SP) or cable (C) possible
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Frequency converters
  • Power supply devices
  • Power controllers
  • Robotics
  • Motor control systems



Download

EBG Series LPP-250 Download

WLL-320 series

300 W at 25°C bottom case temperature or 200 W at 85°C. This power resistor series is available with different connection possibilities and up to five different layouts.





Features



  • Operating power: 1 x 200 W / 2 x 80 W / 3 x 45 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: 0.1 Ω to 1 MΩ
  • Temperature coefficient: > 1Ω ±250 ppm/°C
  • Connection option: standard fast-on or cable (C) possible
  • Low-inductance design
  • RoHS compliant



Download

EBG Series WLL-320 Download

ACP-100 series

The 100 W power resistor with 85°C bottom case temperature. This series has a Fast-On connection for easy mounting on heat sinks and PCB.





Features



  • Operating power: 100 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: 0.24 Ω to 1 MΩ
  • Temperature coefficient: >1 Ω  ±150 ppm/°C
  • Resistor is available with preapplied PCM (Phase Change Material)
  • Low-inductance design
  • RoHS compliant
  • AEC-Q200 compliant



Download

EBG Series ACP-100 Download

RPS-100 series

The 150 W power resistor with 70°C bottom case temperature.





Features



  • Operating power: 150 W
  • Tolerance range: ± 1% to ± 10%
  • Ohmic range: 0.1 Ω to 1 MΩ
  • Temperature coefficient: ±150 ppm/°C



Download

EBG Series RPS-100 Download

AXM series

The 100 W low-ohm pulse power resistor - only 1 configuration possible





Features



  • Operating power: 100 W
  • Tolerance range: ± 5% to ± 10%
  • Ohmic range: from 0.05 Ω to 5 Ω
  • Temperature coefficient: ±500 ppm/°C
  • Standard wire length: 10 mm (other lengths available)
  • Low-inductance design
  • RoHS compliant



Main areas of application



  • Motor drives and controls
  • Welding technology
  • Traction
  • Medical technology
  • Electric vehicles
  • Frequency converters



Download

EBG Series AXM Download

LCR6000 series

The LCR6000 is made of metal alloy structure and is directly cooled with high purity water.



Features

  • Tolerance range: ± 1% to ± 5%
  • Ohmic range: from 1 Ω to 130 Ω
  • Temperature coefficient: ±150 ppm/°C
  • RoHS compliant



Main areas of application

  • Electricity generation, transmission
  • Electrial drive system



Download

EBG Series LCR6000 Download

RST5N series

The pre-charge RST5N resistor series is a robust resistor for extreme high pre-charge pulses. Suitable for high voltages up to 1000 V.



Features

  • Operating power: 100 W
  • Tolerance range: ± 5% to ± 10%
  • Ohmic range: from 25 Ω to 200 Ω
  • Temperature coefficient: ±1000 ppm/°C
  • RoHS compliant
  • AEC-Q200 qualified



Download

EBG Series RST5N Download

Certifications & quality features

Our products and series are characterized by the following certifications and features



  • ROHS compliant
  • AEC-Q200 qualified series available (ask for details)
  • Materials in accordance with UL 94 V-0

Kontaktieren Sie uns!
